ACL Race Series - Main Bearings to suit LS1 LS2 LS3

ACL Race Series - Main Bearings to suit LS1 LS2 LS3

$205.65
$205.65
Sale Sold out
Tax included.
Size

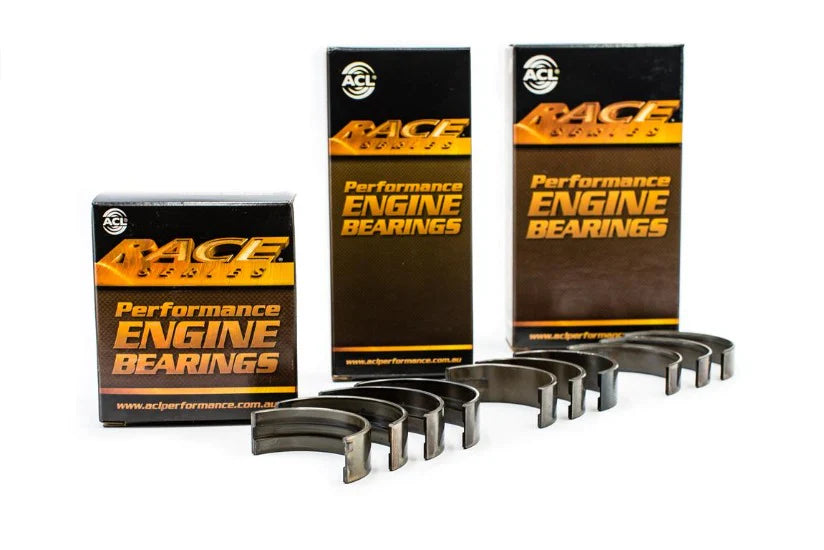

ACL RACE SERIES MAIN BEARING TO SUIT HOLDEN LS1 LS2 LS3 ~ 5M7298H

High performance Trimetal engine bearings

  • Designed to withstand higher RPM conditions
  • High strength overlay plate with reduced thickness for improved fatigue properties
Specifications for STD size only

Sizes STD, HX 001, 002, 010, 020
Oil Clearance
Half Type Upper & lower
Material F780
Min. Std Shaft Size 64,993 mm / 2.5588 in
Max. Std Shaft Size 65,007 mm / 2.5593 in
Min. Std Tunnel Size 69,873 mm / 2.7509 in
Max. Std Tunnel Size 69,887 mm / 2.7515 in
Max Wall at Crown 2,43 mm / 0.0957 in
Max Overall Length
26,1 mm / 1.0276 in (7299H(F))
20,45 mm / 0.8051 in (7298H)
